TRANSFER TOOL

Impressive track record in the design and manufacture of transfer tools

Verbom has processed and developed numerous automatic transfer tooling programs. These programs have allowed Verbom to gain a thorough understanding of the relationship between part tolerancing and transfer tooling design. Working with cast based design parameters provides VERBOM the additional competitive edge in lowering tooling costs as well as minimizing expenses throughout the program.

TRANSFER TOOL PROJECTS

01 / 04
02 / 04
03 / 04
04 / 04

AUTOMOBILE CHASSIS PARTS

Verbom can manage all aspects of a tooling program. From strip design through final Production Part Approval Process (PPAP), Verbom can take the lead in part processing, tolerance feasibility studies, check fixture design, tooling design and transfer automation.

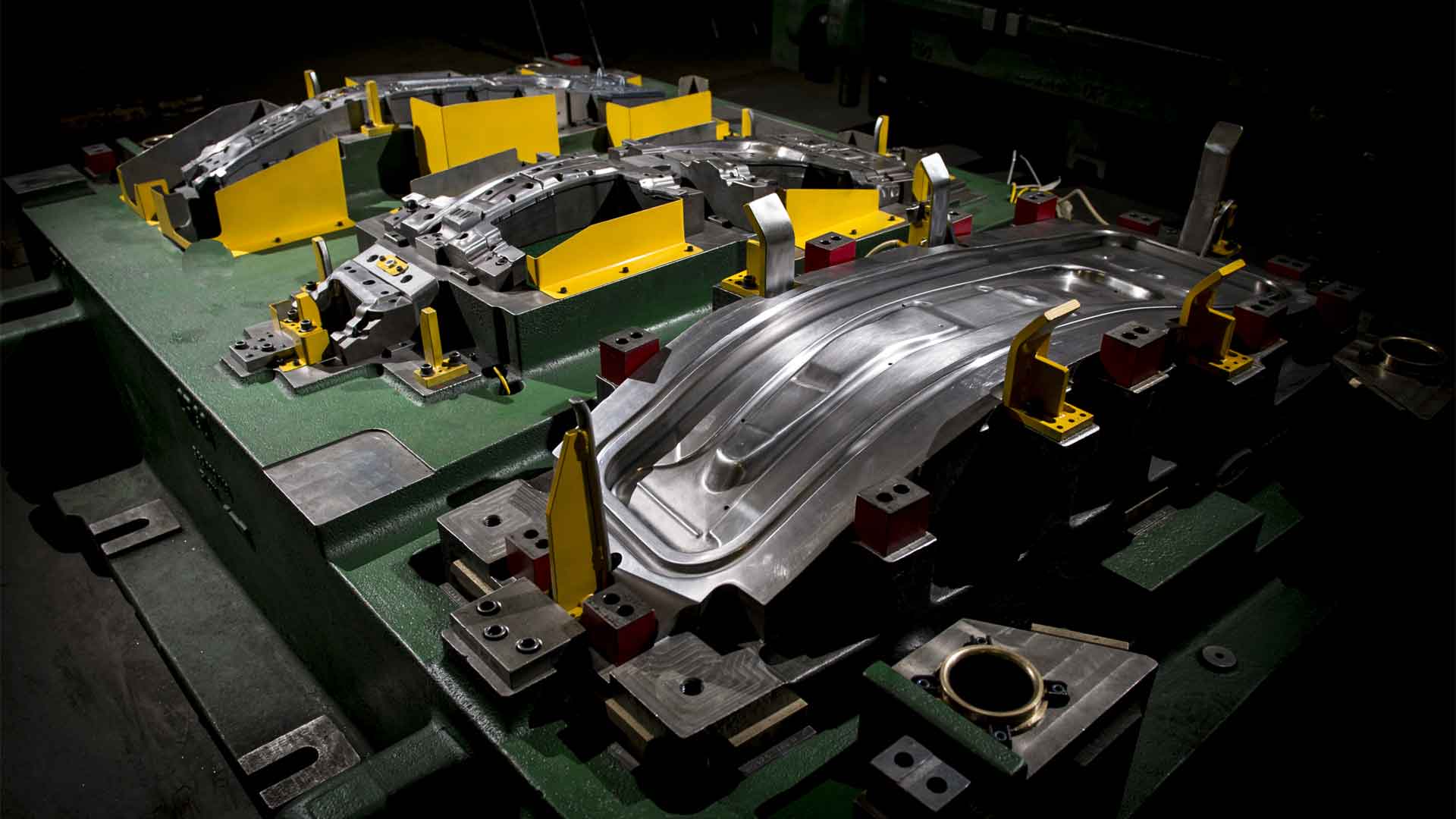

Automated transfer tools for a floor tunnel reinforcement. Verbom managed the entire tooling process and development.

01 / 01

FUEL TANKS

Utilizing its Finite Element Analysis (FEA) experience with Autoform, Verbom offers product development services for many clients including tools used in the manufacture of fuel tanks for hybrid sports vehicles.

01 / 03
02 / 03
03 / 03

MULTILAYERED HEAT SHIELD

With over 12 years experience in the manufacturing of heat and acoustic shields, Verbom is able to offer customized industrial solutions for 1100 aluminum, aluminized steel, or stainless steel.

4 layers. Two layers of 0.4 mm thick 1100-0 aluminum, a 6 mm insulating fibre, and a 0.1 mm micro-perforated aluminum layer.
